Multi-function Vertical Prick Type Extraction Tank

Multi-function vertical prick type extraction tank is commonly used in medicine, biology, food, chemical leaching extraction equipment. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft. It has the advantages of high efficiency, easy to operate.

Usages of Multi-function Vertical Prick Type Extraction Tank

This extraction equipment is to service at such industries as China traditional drug, foodstuff and chemistry for the technologies such as normal pressure, mini pressure, water decocting, and warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic.

Characteristics of Multi-function Vertical Prick Type Extraction Tank

1. The traditional form, the construction of the space is lesser, widely used for extracting workshop.
2. Slag on the door has a bottom heating, make medicinal herbs extract more completely.
3. To improve the way of produced liquid and increase after mixing device can be applied to dynamic extraction system.
4. With high efficiency and convenient operation.
5. CIP cleaning system inside the tank comply with GMP standard

Technical Parameters of Multi-function Vertical Prick Type Extraction Tank

Style No	TQ-1000	TQ-2000	TQ-3000	TQ-6000	TQ-8000	TQ-10000
Volume	1200	2300	3200	6300	8500	11000
Tank design pressure(MPA)	0.09
Jacketed layer design pressure(MPA)	0.3
Feed orifices diameters(mm)	400	400	400	500	500	500
Heating area (㎡)	3	4.7	6.8	10	12	15
Condensation area (㎡)	4	5.4	8	10	15	18
Cooling area(㎡)	1	1	1.5	2.2	2.2	2.2
Filter area (㎡)	0.25	0.25	0.25	0.3	0.3	0.36
Slag discharge door diameters(㎡)	800	800	800	1000	1000	1000
Gas consumption（kg/h）	285	346	570	718	903	1140
Equipment weight（kg）	1800	2050	2400	3025	4030	6500
Heating steam orifices	DN-50	DN-50	DN-60	DN-60	DN-80	DN-80
Secondary orifices	DN-80	DN-80	DN-100	DN-100	DN-100	DN-100
Cooling water orifices	DN-50	DN-50	DN-60	DN-60	DN-70	DN-70
Motor power(KW)	2.2	4	5.5	5.5	7.5	7.5
Stirring speed(rpm)	21	21	32	32	32	32

Notes:

Technical parameters of extracting tank can be adjusted according to the actual working condition of physical properties.

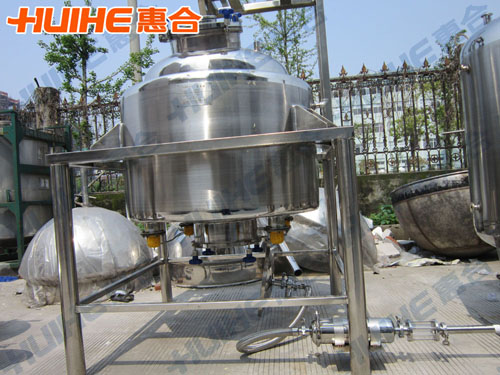

Multi-function Vertical Prick Type Extraction Tank Finished Picture
